TP Link AV1000 Gigabit Passthrough Powerline WPA7617

Product Information:

Reliable WiFi to Every Room
The powerline products TL-WPA7617 KIT transforms your home’s existing electrical circuit into a ultra-fast-speed network, and brings wired and wireless networks to anywhere there is a power outlet.

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7617 KIT ensures stable and high-speed WiFi, and also wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.

Gigabit Ethernet for Reliable Connections
One Gigabit Ethernet port provides warp-speed wired connections for 4K HD streaming, lag-free gaming, and more. Two Ethernet cables are included in the box.

AC 1200 WiFi for Ultra-fast Internet Connections
AC1200 dual band WiFi (867 Mbps on 5GHz & 300 Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home.

Don’t Worry about Occupying an Outlet
Simply plug into your TL-PA7017P as though it were a normal wall socket. Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences.

Plug and Play,
No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:
>Step1 : connect TL-PA7017P to your router.
>Step2 : plug in TL-WPA7617 wherever you need wired and wireless internet service.

One-Touch Wi-Fi Configuration
Instantly copies the wireless network name (SSID) and password from your router by pressing the WiFi Clone button. Besides, any changes made to the WiFi settings of any powerline adapter will be automatically applied across the entire Powerline network.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

Product Specification:

• Transmission Speeds:
• Powerline: Up to 1000 Mbps
• Ethernet: 10/100/1000 Mbps
• Transmission Distance: Up to 300 meters/1000 feet over existing electrical wiring
• Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
• IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
• Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
• Plug Type: UK
• Interface:
• TL-WPA7617: 1 Ethernet Port;
• TL-PA7017P: 1 Ethernet Port
• Button: Pair, Reset, Wi-Fi Clone, LED On/Off
• Power Consumption:
• TL-WPA7617: Maximum: 11W, Typical: 6.5W
• TL-PA7017P: Maximum: 2.9W, Typical: 2.6W
• LED Indicator: Power, Powerline, Ethernet, Wi-Fi
• Dimensions ( W x D x H ):
• TL-WPA7617: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
• TL-PA7017P: 2.3 × 1.7 × 3.7 in. (58 × 42 × 95 mm)
• Range: Up to 300 meters/1000 feet over existing electrical wiring
• Wireless Standards:
• TL-WPA7617: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
• TL-PA7017P: N/A
• Wireless Speeds: Up to 1200 Mbps
• Frequency:
• TL-WPA7617: 2.4 GHz and 5 GHz
• TL-PA7017P: N/A
• Signal Rate:
• TL-WPA7617: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• TL-PA7017P: N/A
• Wireless Security: Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
• Mesh Technology:
• EasyMesh-Compatible
• Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.
• Security:
• Powerline: 128-bit AES Encryption
• Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
• Management: tpPLC: Scan the QR code to download TP-Link tpPLC App.
• Or download new tpPLC Utility on PCs: www.tp-link.com.
• Modulation Technology: OFDM (PLC)
• Encryption:
• Powerline: 128-bit AES Encryption
• Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
• OneMesh™: OneMesh™ Supported
• Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
• Dimensions (W×D×H):
• TL-WPA7617: 2.7 × 1.4 × 4.9 in (69.5 × 35 × 124.1 mm)
• TL-PA7017P: 2.3 × 1.7 × 3.7 in (58 × 42 × 95 mm)
• Package Contents:
• AV1000 Powerline Wi-Fi Kit: TL-WPA7617 & TL-PA7017P
• 2× Ethernet Cables
• Quick Installation Guide
• Certification: CE, RoHS
• Package Contents:
• AV1000 Powerline Wi-Fi Kit: TL-WPA7617 & TL-PA7017P
• Ethernet Cable × 2
• Quick Installation Guide
• System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
• Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% non-condensing

(SKU: 4897098687628)

TP Link AV1000 Gigabit Powerline TL-PA7017 KIT

Product Information:

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*
*Actual data will vary in different network conditions and environments.

(TLPA7017KIT)

Product Specification:

• Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901,
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Interface Gigabit Ethernet Port
• Button Pair/Reset button
• Power Consumption Maximum: 2.7W (220V/50Hz)
• Typical: 2.3W (220V/50Hz)
• Standby: 0.5W (220V/50Hz)
• LED Indicator PWR, PLC, ETH
• Dimensions ( W x D x H ) 2.6*2.0*1.1 in (65*52*28.5mm)
• Range 300 Meters over electrical circuit
• Modulation Technology OFDM (PLC)
• Encryption Powerline Security: 128-bit AES
• Certification CE, RoHS
• Package Contents Powerline Ethernet Adapter, 6.5 ft. (2 m) Ethernet cable (RJ45), Quick Installation Guide
• System Requirements Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux
• Operating Temperature: 0°C~40°C (32°F ~104°F)
• Storage Temperature: -40°C~70°C (-40°F ~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

(SKU: 4897098688489)

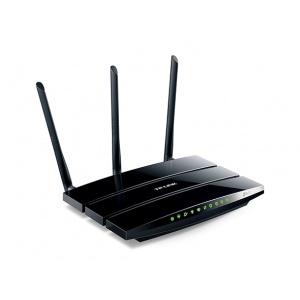

TP-LINK TD-W8980 N600 Wireless Gigabit ADSL2+ Modem Router

HARDWARE
Modem	ADSL2+
Wi-Fi standard	802.11n
Bands	2.4GHz, 5GHz
Stated speed	300Mbit/s
Security	WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPS
Upgradable antenna	Yes
WAN ports	1
LAN ports	4x 10/100/1000Mbit/s
USB ports	2x USB
Wall mountable	Yes
Size	243x161x33mm
SOFTWARE
Guest networks	None
Media server	DLNA, SMB, FTP
USB services	Print sharing, NAS
DDNS services	Dyndns.org, No-IP.com

(SKU: 6935364060749)
