Nedis SLNB10SWT LNB Single Output Connection 1x F Connector

Product Information:

Mount this Nedis single LNB on installations that require superior signal strength and quality. It reduces the noise figure. The final noise figure ranges from 0.2 dB to 0.9 dB.

This single LNB is suitable for connecting 1 satellite receiver to your satellite dish.

Product Specification:

• Image rejection (min.) 40 dB
• Satellite accessory type LNB
• Low band switching 0 kHz
• Polarity switching voltage vertical DC 11,0 - 14,0 V
• Polarity switching voltage horizontal DC 16,0 - 20,0 V
• Input frequency range low band 10.7-11.7 GHz
• Input frequency range high band 11.7-12.75 GHz
• Operating temperature range -40-70 °C
• High band switching 22 kHz
• Current consumption 0.08 A
• Cross polarization 18 dB
• Local oscillator frequency phase noise -80 dB c/Hz @ 10 kHz (max.)
• Conversion gain 53-65 dB
• Output connection 1x F-Connector
• LNB type Single
• Noise figure range 0.90 dB
• Output spurious -60 dB
• Output frequency range high band 1.100-2.150 GHz
• Gain flatness 26 MHz bandwidth ± 0,5 dB

(SKU: 5412810320806)

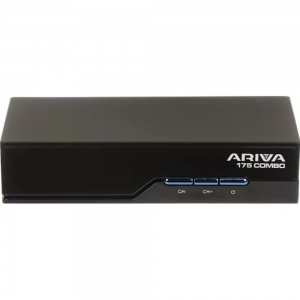

Ferguson Ariva 175 Combo Receiver Box C2A03313YC

Product Information:

HD combo receiver for receiving both:

• Irish Digital Terrestrial TV (Saorview Channels)
• Standard & HD UK Satellite Channels

PVR Features - Add Recording with an External Hard drive
Equipment needed: 250GB, 320GB portable hard drive or mains powered drive (FAT32 formatting).

Advantages of Ferguson Ariva 175 Combo Receiver

• The Ferguson Ariva 175 does the job of both a HD satellite & digital terrestrial receiver in a single unit
• Also you can watch Irish TV & record a programme on a UK satellite channel
• You can watch a UK channel and record something on the Irish stations
• Supports both standard & high definition transmissions
• The Ferguson Ariva 175 is very competitively priced
• It future proofs your investment by meeting all the latest HD standards
• Has PVR features (ie.. Can Pause/Record live TV with addition of external storage device)
• The Ferguson Ariva 175 has a DVB-T2 terrestrial tuner so it is not only suitable for Saorview, it will also work with Freeview HD from Northern Ireland
• Bluetooth remote control so can operate the set top box when hidden behind a TV or in a cabinet

Box Contains:

• Ferguson Ariva 175 Combo Receiver
• Remote Control
• User Manual in English
• HDMI Cable
• 5Vdc ~ 1.2A Power Supply

Product Specification:

• Brand: Ferguson
• Colour: Black
• Voltage: 5
• HDMI: Yes
• Scart: Yes
• USB: Yes
• Ethernet: Yes
• Hard Drive: Yes
• Pause/Rewind Live TV: Yes
• Remote Control: Yes
• Definition: Standard & High Definition
• PVR Ready: Yes
• Resolution: 1080p
• MPEG: H.265/HEVC/H.264/MPEG-4/AVS High Definition Digital TV
• DVB-S2 / DVB-T2 / DVB-C Compliant: Yes
• Multi Language Support: Yes
• Aerial IN: Yes
• HDMI OUT: Yes
• LNB IN: Yes
• CA Card Reader: Yes
• Manual Operation Buttons: Yes
• Digital Display: Yes
• S/PDIF: Yes
• Number of USB Ports: 2
• Supports FAT32 & NTSC: Yes
• Video: VOB, MPG, M2T, MP4, MKV, MOV, M2TS, AVI
• Music: MP3, WAV etc.
• Images: JPG, BMP etc.

(SKU: 5907115003962)

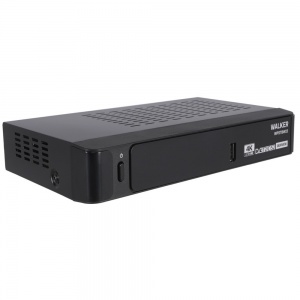

Walker Saorview RTE Player Approved Combi Box WPSTBW23

Product Information:

Saorview Approved
Saorview Approved products are designed to work with Ireland's Saorview TV service, and have undergone rigerous testing to demonstrate this.

Irish & UK TV channels - No monthly bills
When installed the SAORVIEW & SATELLITE tuners give you IRISH & UK TV & radio channels with no monthly bills. This model has one simple channel menu for all stations. You can also record your favorite tv shows to a connected hard disk.

Product Specification:

• Combi set top box
• Saorview approved
• Rte player
• Uhd dv3 t2+c dv3 st
• Hdmi 2.1
• Pvr ready
• Dolby ac4
• Dolby atmos
• Front usb
• Wifi
• Record needs usb key or hdd
• No scart connection
• No hdmi cable in the box
• Brand: Walker
• Saorsat Approved: Yes
• UK STations via Astra Satellite: Yes
• Saorview Approved: Saorview ans Satellite

(SKU: 5391542730278)

Sony SRS-NS7 Wireless Neckband Speaker

Product Information

Wireless neckband speaker with 360 Spatial Sound (2021 Sony BRAVIA XR TV required), X-balanced speaker unit, lightweight IPX4 design and 12 hours battery life

• Wireless neckband speaker for movies and music
• 360 Spatial Sound Personalizer creates Dolby Atmos® phantom speakers for immersive surround sound
• Flexible and ergonomic form-fitting design, and IPX4 splash-proof design for all-day wearing
• The supplied WLA-NS7 transmitter minimises audio delay for a synchronised sound and picture viewing experience.
• Practical for daily use and multi-tasking, with a comfortable, soft-feel design, up to 12-hour battery life, quick charging (10 mins for 60 mins of play time), hands-free calling, and multi-point connection.

360 Spatial Sound

Tailor your Dolby Atmos® experience in combination with SRS-NS7 and BRAVIA XR™[FN|Firmware update available by Jan 2022 and is required to enjoy 360 Spatial Sound on BRAVIA XR. Network connection required for firmware update of BRAVIA XR.] and enjoy 360 Spatial Sound. These wireless neckband speakers create atmospheric personal cinema that surrounds you for a whole new way of listening

360 Spatial Sound Personalizer [FN|Sony | 360 Spatial Sound Personalizer is an app that personalises your sound experience when connected to a BRAVIA XR TV.]

Analysing the shape of your ears, the SRS-NS7 works with the supplied wireless transmitter WLA-NS7 to create the ideal arrangement of virtual Dolby Atmos speakers all around you. Be immersed in the scene and feel right at the heart of the action.[FN|To enjoy a personalised Dolby Atmos® experience, connect the WLA-NS7 supplied wireless transmitter with a BRAVIA XR television (sold separately).]

Connect

Connect the supplied WLA-NS7 wireless transmitter to your BRAVIA XR TV[FN|Firmware update available by Jan 2022 and is required to enjoy 360 Spatial Sound on BRAVIA XR. Network connection required for firmware update of BRAVIA XR.] with an optical cable and USB cable.

Personalise

Capture your ear shape using the Sony | 360 Spatial Sound Personalizer app and enjoy a personalised sound experience.

360 Reality Audio[FN|Sony | Headphones Connect App is needed for enjoying personalized 360 Reality Audio on smartphone. Requires subscription to a music streaming service - subscription fees apply. Some services may not be available in certain counties/regions.]

With 360 Reality Audio, music has never felt so real. Open a compatible music service on your smartphone and be fully immersed like you’re right there at the concert.

Pair

Pair the SRS-NS7 neckband speaker with the supplied wireless transmitter WLA-NS7 over a Bluetooth® connection.[FN|SRS-NS7 automatically connects to the WLA-NS7 when the SRS-NS7 and WLA-NS7 are turned on.?]

Upward-facing speaker

Delivers clear sound directly at you without disturbing others. Be fully immersed in your movies and music, even at midnight.

X-Balanced Speaker Unit

Optimum speaker size in a compact body. Increases sound pressure and reduces distortion for clear music and vocals.

Made for non-stop entertainment

With a flexible and ergonomic design that fits securely around your neck, this wearable wireless speaker provides hours of comfortable viewing of movies, TV shows and concerts.

Passive radiator

Increases low frequency response for clear bass sound. Hear thumping movie sound effects and deep beats.

(SKU: 4548736129702)

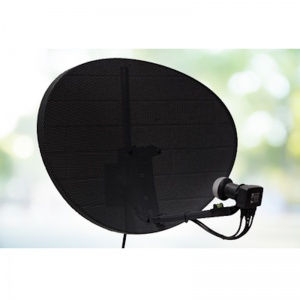

IC Plus 60cm Mesh Satellite Dish with Quad LNB 450356

Product Information:

Providing you with Sky TV, Freesat and Free to Air applications, this satellite dish is the most widely used satellite dish in Ireland. This Satellite Dish with Quad LNB allows for four feeds to be run from the dish which can power four standard Free to Air / Standard Sky room installs or two Sky+, Sky+ HD or Freesat+ installs.

The superior construction allows you to withstand harsh weather conditions while delivering a powerful signal strength.

Superior Manufacture & Design
This satellite dish & Twin LNB are both designed with approved and certified materials to provide you with the most
powerful signal strength.

Outstanding Performance & Signal Gain
This satellite dish is a Zone 2 - giving it a higher signal gain than zone 1 which allows for a better reception and
exceptional performance.

Compatibility
Built and designed to withstand the harsh Irish weather, this satellite dish ensures a clear signal reception even
during harsh weather environments.

Multiroom Setups
You can arrange up to 2 standard or a single Sky+ boxes from a dish which allows you to cut costs and unnecessary time.
This means up to 2 rooms can be fed from the Twin LNB.

HD Ready
This satellite dish is HD ready, allowing you the freedom to enjoy crystal clear video and superior audio once assembly
is complete.

Assembly Instructions Included
While installation of this satellite dish is not extremely demanding, it does take confidence. Instructions on installation
are included with this purchase.

Product Specification:

• Quad LNB:
• Input Frequency: 10.7 ~ 12.75 GHz Vertical: 290 ~ 2340 MHz
• Output frequency: Horizontal: 290 ~ 2340 MHz
• L.O. frequencies: 10.41 GHz +/-0.5 MHz (max) @ Room Temp
• L.O. Stability: +/-1 MHz (max) @ -40°C ~ +60 -50dBc/Hz @ 1kHz (max.)
• L.O. Phase Noise: -75dBc/Hz @ 10kHz (max.) -100dBc/Hz @ 100kHz (max.)
• Noise Figure: 0.1 dB (typ.)
• Conversion Gain: 50 dB (min) / 60 dB (max)
• Gain Flatness @ 26MHz: /-0.5dB (typ.)
• Gain Variation: 7dB (max.) @ full band
• Cross Polar Isolation: 25 dB (typ.)
• Image Rejection: 40 dB (min)
• Current Consumption: 0.85W (max.) (70mA @ +12V D
• Power Voltage: 9 - 19V DC
• Connector Type: 75 female F-connector
• Output Spurious: <-60dBm
• Operating Temp: -40'C ~ +60'C
• RED Compliance: EN 303 372-1
• Satellite Dish:
• Weatherproof: Yes
• Surface: Mesh
• Shape: Oval
• Indoor/Outdoor: Outdoor
• Included Brackets: Satellite Bracket, Elevation Bracket, LNB Feed Arm, L Tube, Wall Adapter and Fixing Kit

(SKU: 5391522450356)

Labgear LDL204 4 Way Diglink Amplifier

Product Information:

The Labgear LDL204 4 Way Diglink Amplifier is ideal for use in digital satellite home installations, where the output from the receiver can be distributed to several rooms over coax cable with the capability for full remote control of the digibox in these rooms. The addition of DigiLink infra red extenders in the relevant rooms completes the installation. Please note extra remote controls may be required and rooms without a Digilink installed will receive the satellite signal but wont have the capability to control the receiver. Can also be used to distribute TV (Freeview) signals directly from a TV aerial.

Product Specification:

• Separate inputs for UHF 470-4790Mhz and FM/DAB 88-230MHz aerial signals
• Built in filter to prevent interference from LTE800 4G transmitters
• Gain per port 8dB
• Noise figure <3.5dB
• All ports IR enabled - 9V 15mA short circuit protected
• Suitable for distribution of RF2 satellite signals or Freeview TV signals direct from an aerial
• Also suitable for distribution satellite signals from I/O port when used with MRX600 converter
• Built in switch mode 220-240V~50Hz power supply.
• All ports IR enabled 9V 15mA short circuit protected
• Built-in Power supply 220-240V~50Hz at <3W.
• Operating frequency UHF 470 - 790MHz
• Return path frequency range 5-15MHz
• FM/DAB frequency range 88-230MHz
• UHF/FM/DAB gain per port 13dB
• Return path gain "-4dB"
• Inputs 2
• Outputs 4
• Max output level (IMA3-60dB) 102dBuv
• Noise figure <3.5dB
• Return loss input/output 10dB/10dB
• Isolation out/out 20dB
• Connectors F-type

(SKU: 5050171062562)

Amiko HD 4K Combo Receiver Box 027493

Product Information:

This Amiko HD 4K Combo Receiver Box 027493 includes the following features:

• 2 High Speed USB 2.0 Connection Support
• Ethernet Connection
• TimeShifting Support
• MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3 Playback Support
• Software Upgrade via USB
• Dolby Digital Bit-Stream out via HD OUT
• Low Power Consumption in Stand-By

Product Specification:

• Brand: Amiko
• HD satellite box: Yes
• Live pause and record: Yes
• UK stations via astra satellite: Yes

(SKU: 5999883027493)

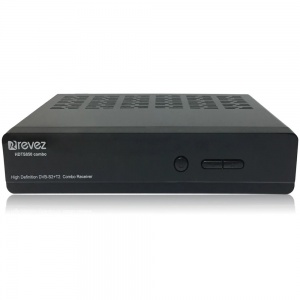

Revez Full HD Combo Receiver HDTS870

Product Information:

The Revez 870 FULL HD Combo Box can receive Free UK HD Satellite TV & Irish Digital Terrestrial TV on a Single PVR Ready Combo Box. This lets you enjoy the best of both worlds from one single remote control, no need for fiddling around with various systems. It also has some media player functions built in, a superb unit for such a low price!

Product Specification:

• Fully DVB-S/S2 / DVB-T/T2 MPEG2/H.264 Compliant
• Free-To Air
• High Speed USB2.0 Connection
• Dolby Digital Bit-Stream out via Coaxial S/PDIF & HDMI
• Full HD (1080p) Output via HDMI
• Scart Output for standard TVs
• 4 Digit Front LED Display
• Channel Recording to External Storage Devices
• TimeShift support
• Multimedia Playback Support (MKV, AVI, MPG, MP4, MOV etc...)
• Subtitle support
• Compact Design
• MP3 & JPEG File Support
• Software Upgrade support by USB
• Electronic Program Guide (EPG)
• User Friendly Multi-Language On-Screen Display
• Program Recording from EPG
• <1W Power Consumption in Stand-By Mode
• 12v 1 Amp 3 Pin Power Adaptor
• Irish 3 Pin Plug Fitted from the factory

(SKU: 5391540131107)

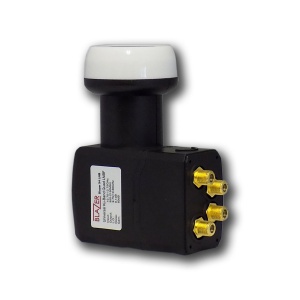

Blazer X4LNB Quad LNB 0.1dB HD 3D 4K Support

Blazer Quad LNB 0.1dB, HD, 3D, 4K Support

Latest model Blazer Quad LNB for universal satellite dishes. Now supporting 4K and 3D.

• Brand: Blazer
• Model: X4
• Colour: Black
• Outputs: 4
• Neck Diameter: 40mm
• Noise Figure: 0.1dB

Item	Specification
Input Frequency Range	Low Band:10.70~11.70GHz High Band:11.70~12.75GHz
Output Frequency Range	Low Band:950~1950MHz High Band:1100~2150MHz
Noise Figure	0.1dB
Conversion Gain	60dB(Typ.)
Gain Flatness	±0.5dB/26MHz
Cross POL. Isolation	25dB(Typ.)
L.O. Frequency	Low Band:9.75GHz High Band:10.60GHz
L.O. Frequency Stability	±1.0MHz(Max.)@+25? ±2.0MHz(Max.)@-30?~+70?
Operating Temperature	-30?~+70?
Item	Specification
L.O. Phase Noise	-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
Image Rejection	40dB(Min.)
Output VSWR	2.0:1(Max.)
Output Power	0dBm (Min.)(at 1dB gain compression)
Connector Type	75? Female Connector
DC Current Consumption	160mA (Typ.)
Low/High Band Switching	Low Band: 0 Hz High Band:22KHz±4KHz
POL. Switching Voltage	10.5~14.0 V @VP 16.0~20.0 V @HP

(SKU: 5391156012036)

Revez Ku-band Quad LNB Connector 130124

Product Information:

Revez ku-band quad lnb

Provides 4 outputs

For multi room viewing

Supports 4k ultra hd

Sliding cover to protect

F terminals from weather

Suitable for installations

That require highest

Signal strength

Full hd 1080p &

Ultra hd 4k

Gain : 60db

Noise gain : 0.1db

Neck width 40mm

**Requires slnb40 adaptor

To work with sky dish**

Product Specification:

• Brand: Revez
• LNB: Yes

(SKU: 5391540130124)
